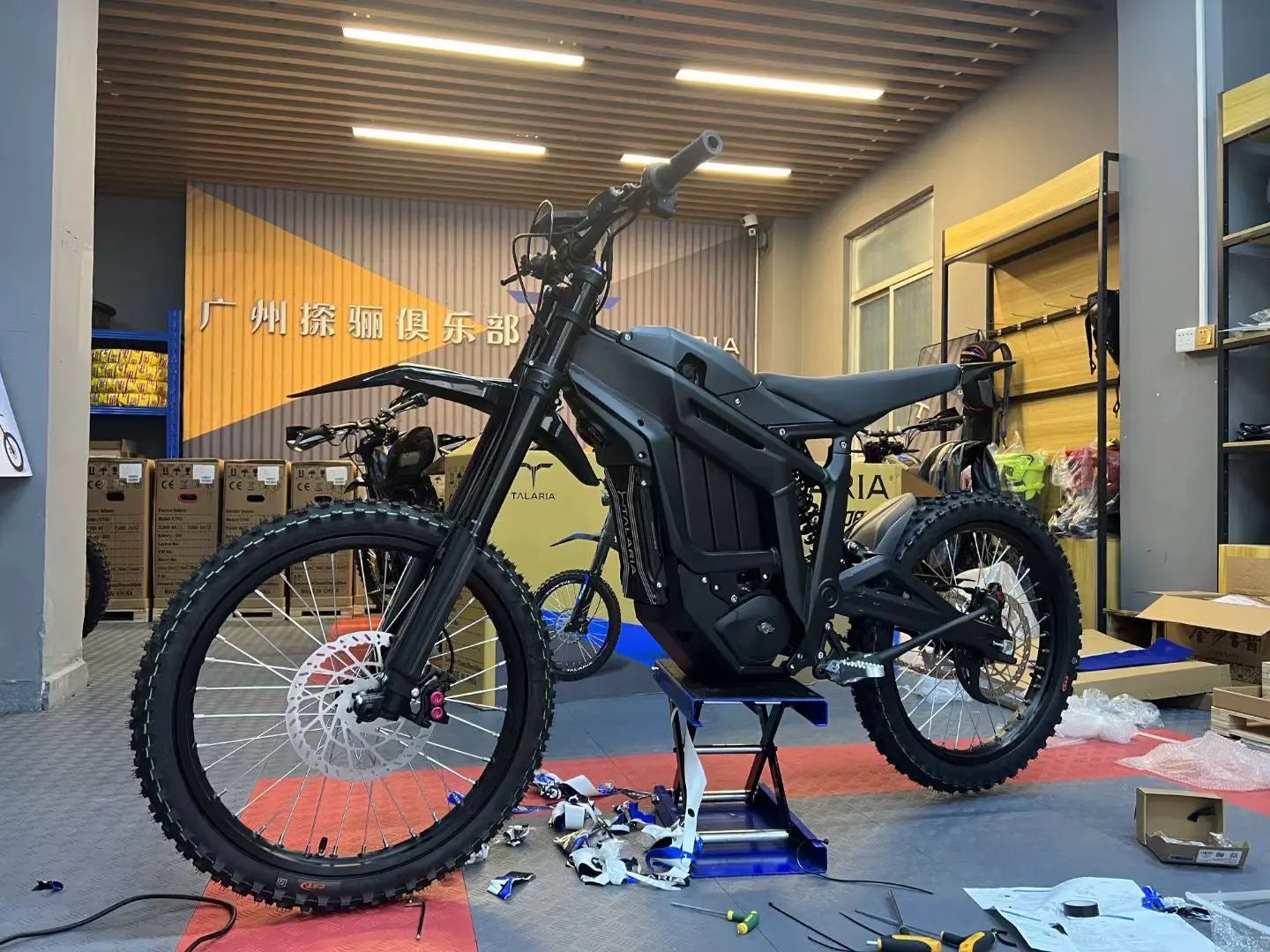

Talaria Sting MX3

VEHICLE:

Chassis Material: 6061 T4 & T6 Aluminium Alloy
Process Method: Forged by 6000 Tons Pressure
Surface Method: Anodizing
Headlight: LED
Front Fork: DNM Fork
Rear Shock: DNM suspension
Wheel Size: 19”
Tire: FR 70/100-19 (Front) / RR 80/100-19 (Rear)
Max. Range: 100 km @ 32 km/h
Net Weight: 63 kg (Including Battery)
Vehicle Dimension: 1850mm x 770mm x 1075mm
Seat Height: 870mm
Wheelbase: 1225mm
Handlebar Length: 760mm
Ground Clearance: 280mm
MOTOR:

Motor Type: LPMSM
Mounting Position: Middle of the Frame
Weight: 7.0 kg
Motor External Diameter: 180mm
Peak Efficiency: 92%
Cooling Method: Air Cooled
CONTROLLER:

Controller Type: FOC
Weight: 2 kg
Dimension: 248mm x 128mm x 50mm
Peak Efficiency: 92%
Highest Work Temp: 100°
POWER SYSTEM:

Nominal Voltage: 60V (DC)
Rated Power: 6000W
Maximum Speed: 75 KMH
Nominal Torque: 34 N.M
Peak Torque: 284 N.M (44T Sprocket) / 309 N.M (48T Sprocket)
TRANSMISSION:

Gear Ratio: 8.35 (44T) / 9.18 (48T)
Gearbox: Chain
ELECTRONIC:

Battery Pack: 60V 38.4AH
Battery Size: 170mm x 140mm x 380mm
Battery Weight: 12.85 kg
Battery Cells: LG Brand 21700 Cell (5000 MAH/Cell)
Speedometer: Speed / Battery Level, Voltage, Cycle / Odometer
Regen Adjustment: 4 Levels Adjustable in the Speedometer
