Talaria xxx TALARIA

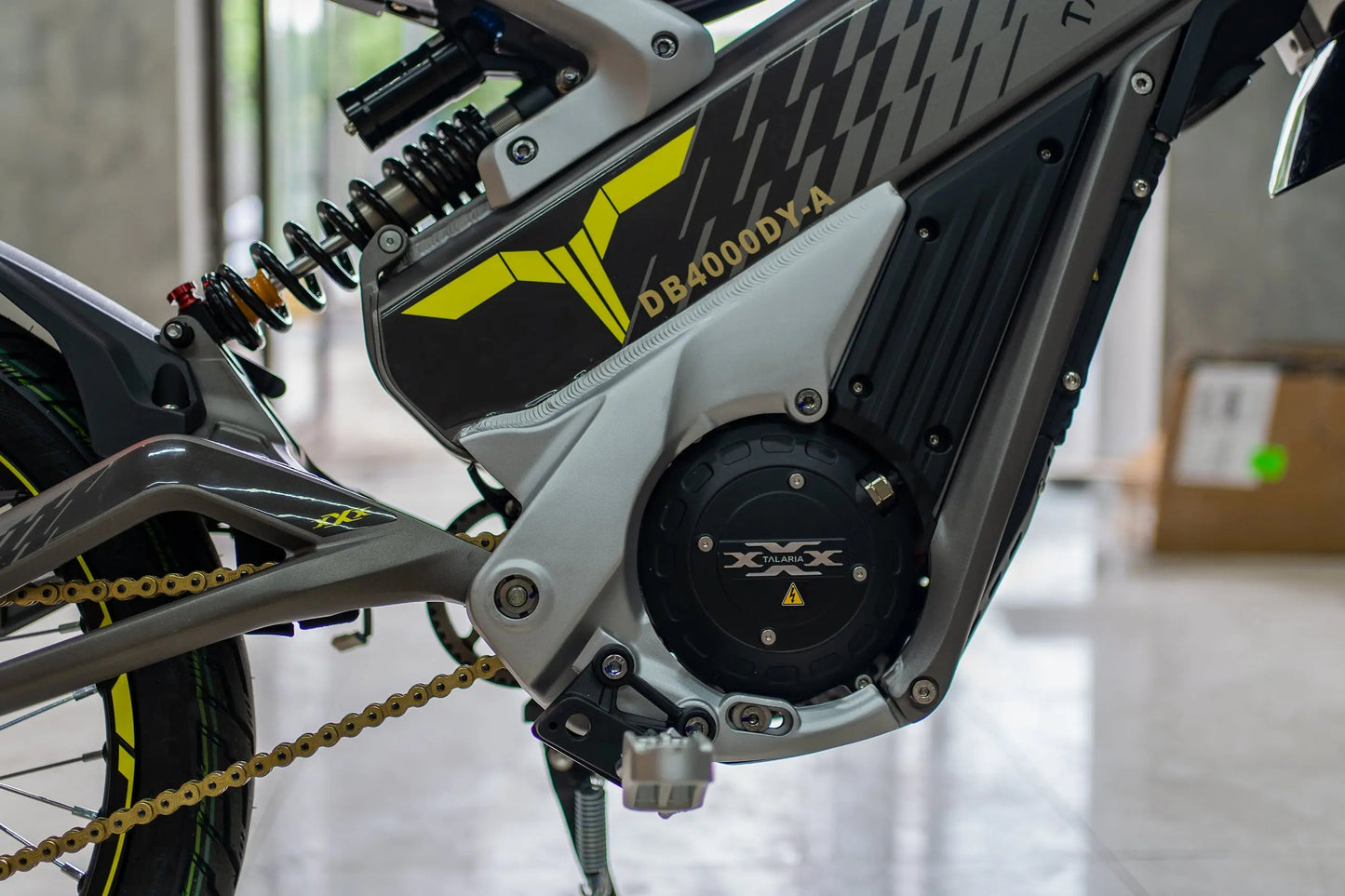

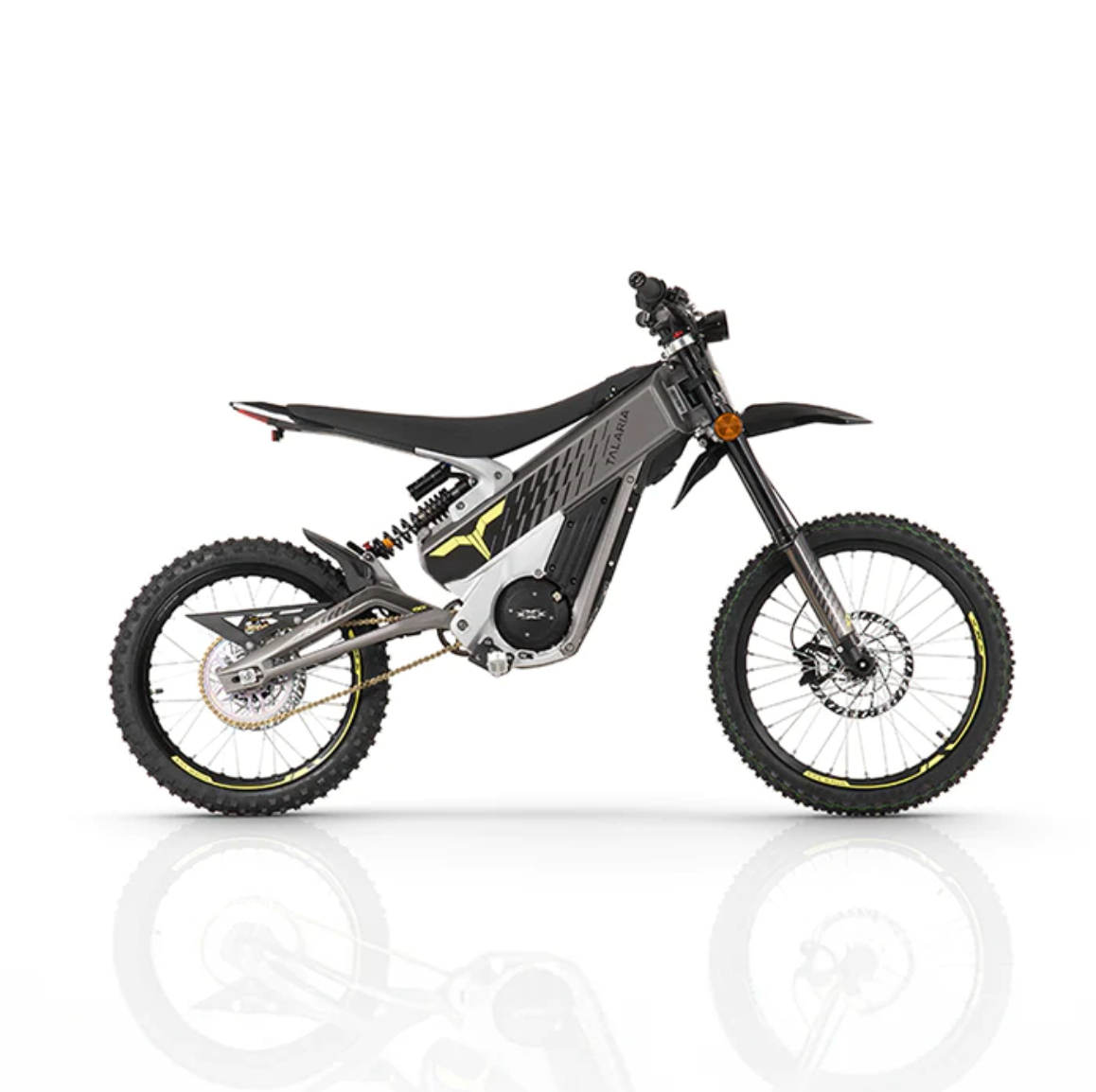

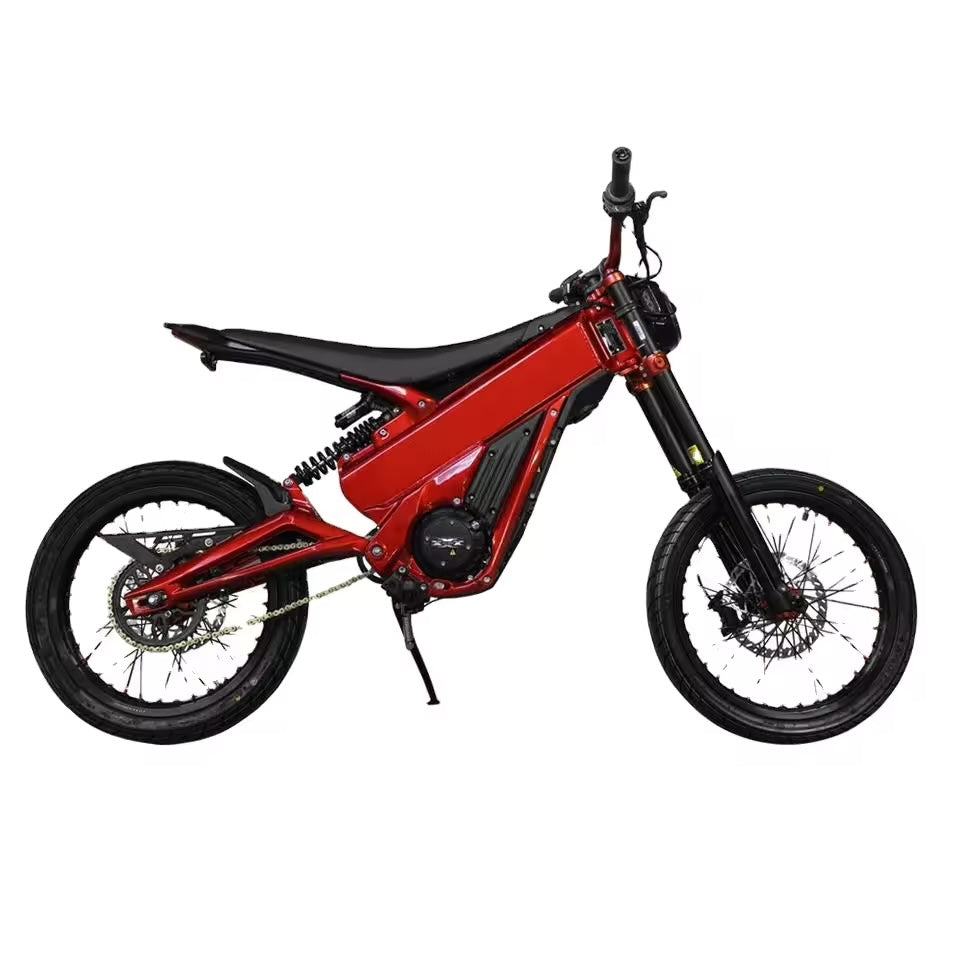

The combination powertrain design is perfect for the light weight electric X3 bike. The high efficiency brushless permanent magnet synchronous mid-drive motor is built with top rated magnet material and advanced processing. DC IPM (Interior Permanent Magnet) Improved Motor. The motor is able to output 45N.M peak torque, as well as to have 284N.m peak torque to the rear wheel.

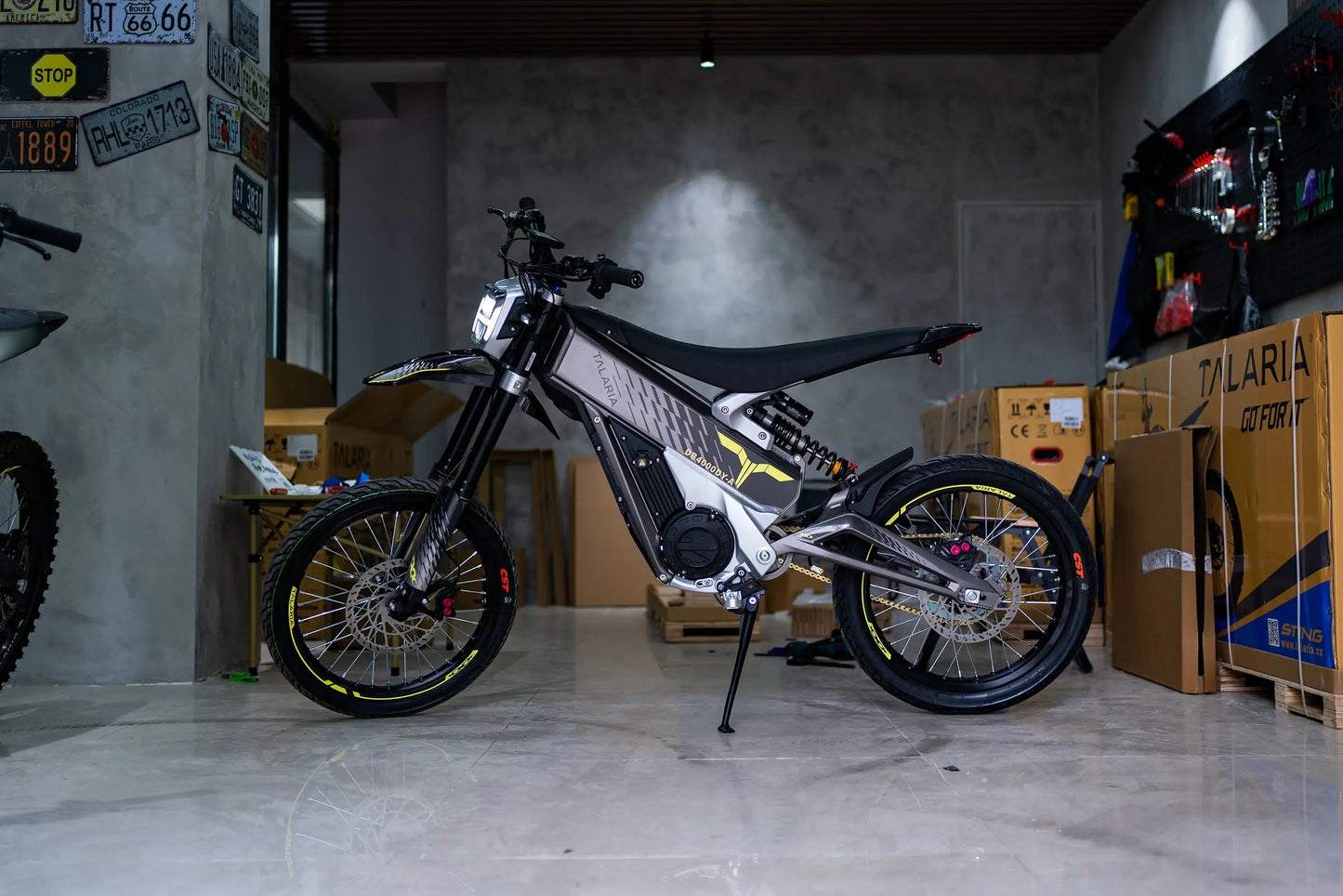

With an all new frame that is purpose built for maneuverability, light weight and compact. This frame uses 6061 aluminum alloy, and a forging process by 6000 tons of pressure for high tensile strength. The bike is guaranteed to give you a safe, fun, and fearless riding experience through even the toughest terrains.

Talaria xxx TALARIA

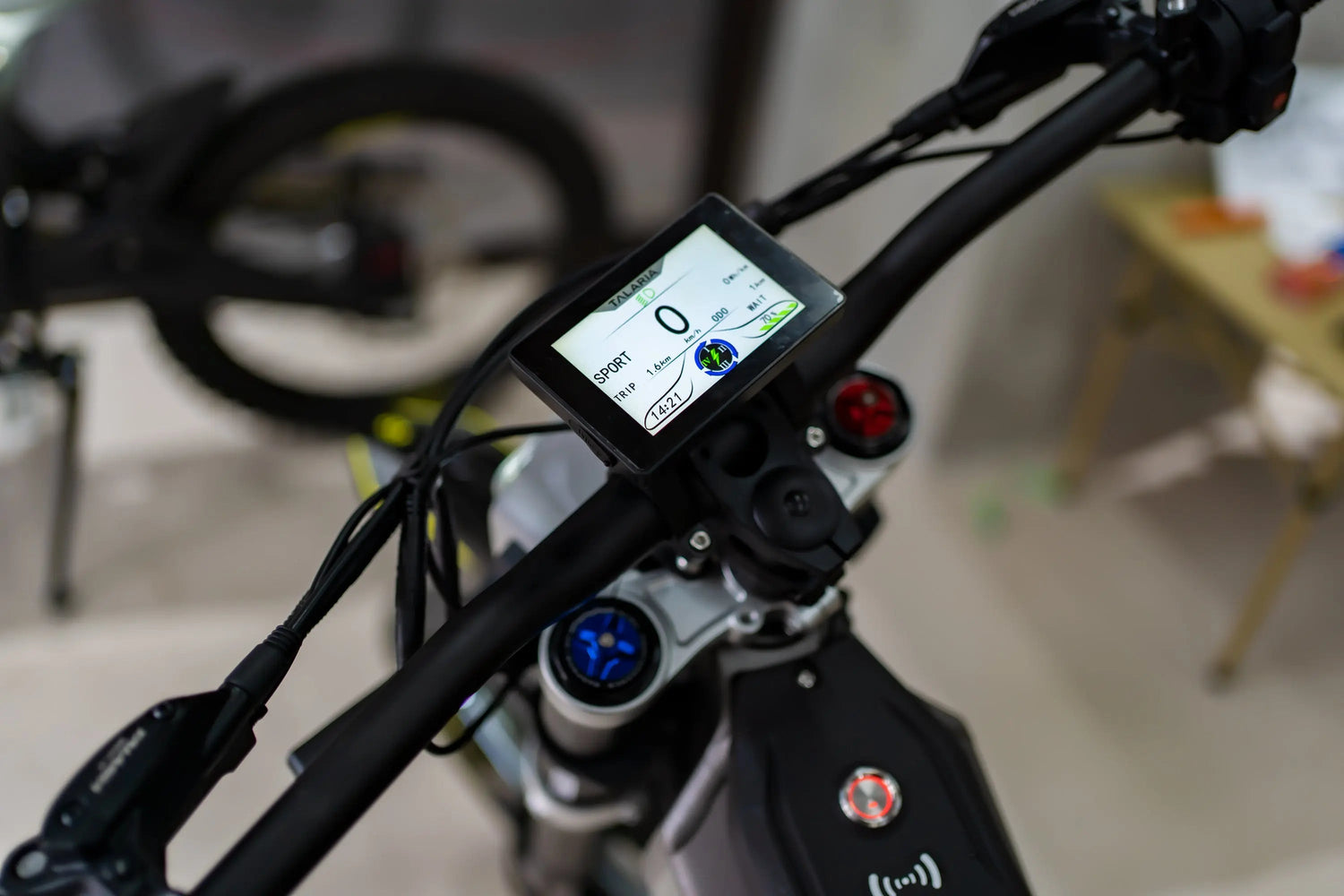

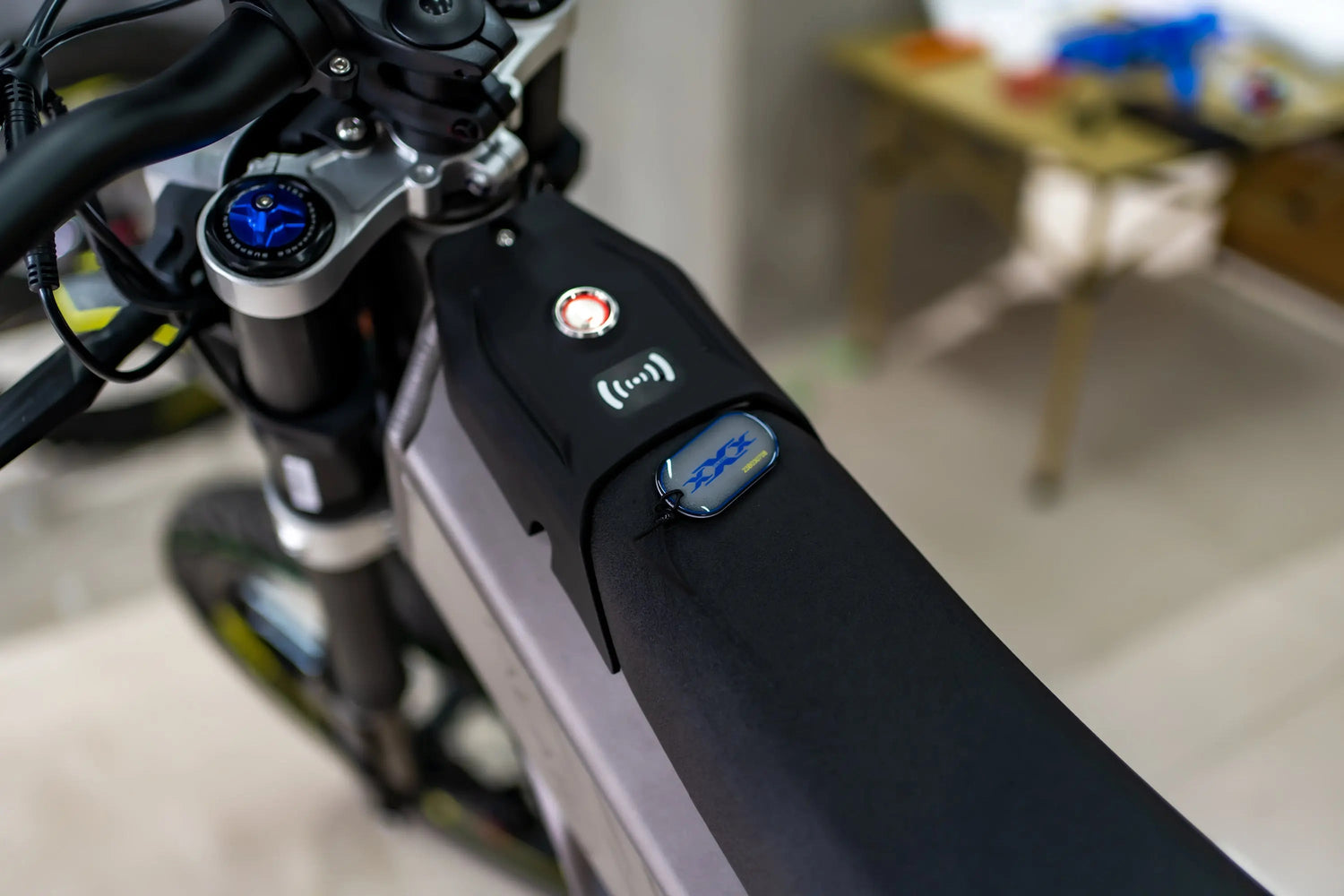

The dash features a high-contrast OLED display, this offers riders a clear picture of data display with low power consumption. The dash uses CAN communication in order to transfer data with the battery pack’s BMS and the motor controller. The display menu provides a range of information, which includes top/average speed, range, battery data, riding mode, error codes, regen level and more. The dash is also adjustableto allow different settings for different wheel size, sprocket size, motor regen levels, and change between KM/H and MPH to enhance the compatibility of the bike.

Talaria xxx TALARIA

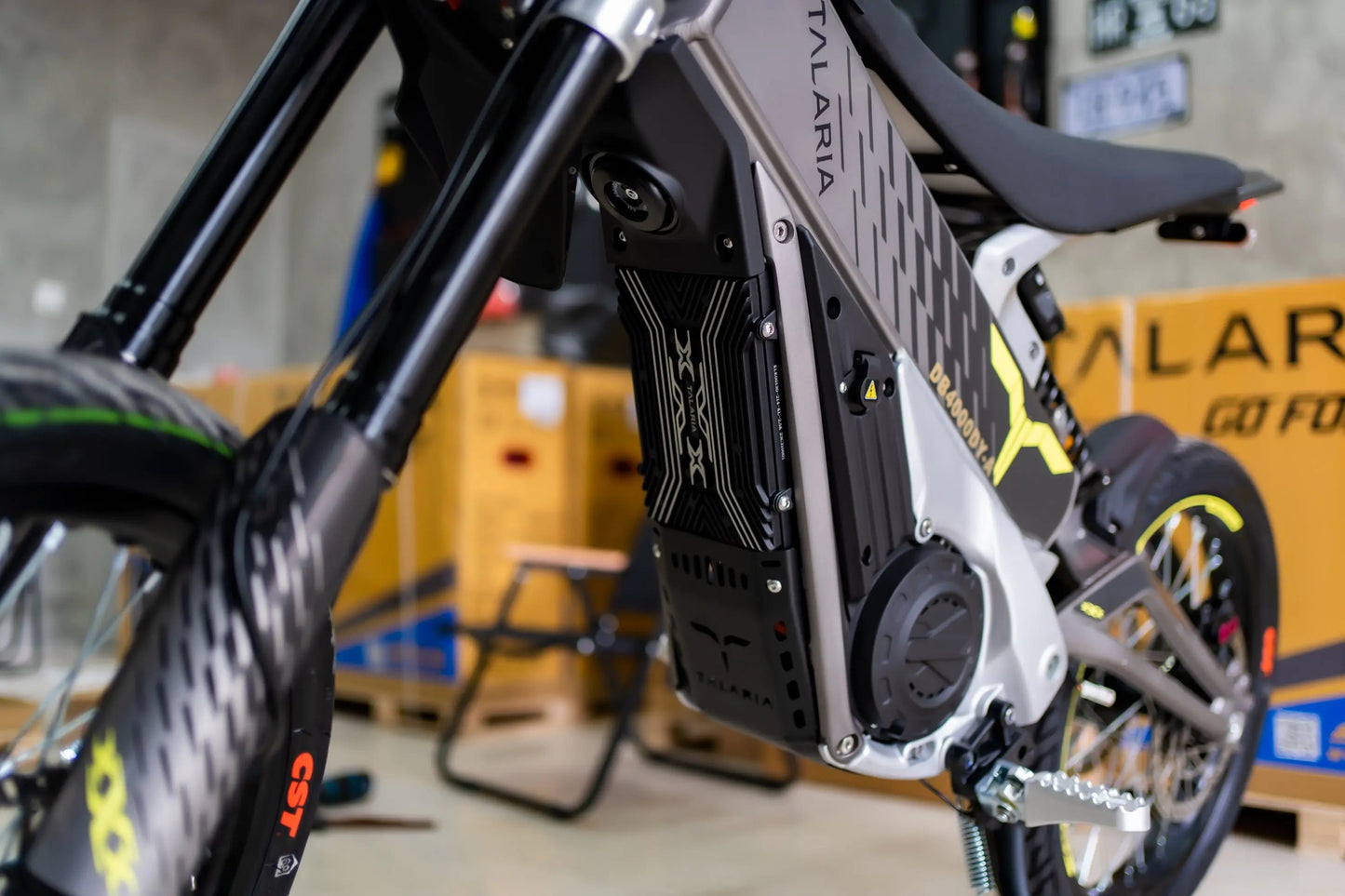

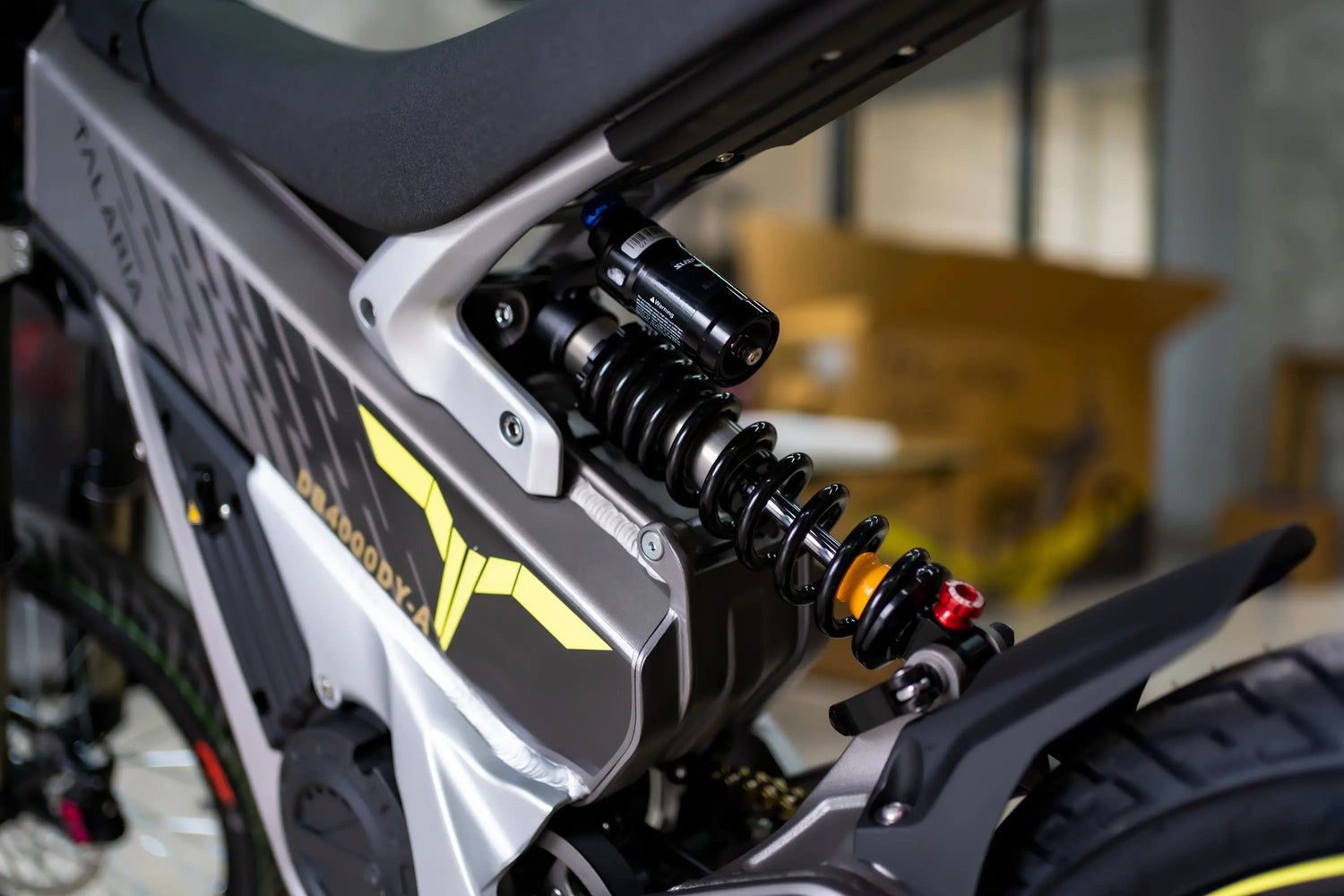

The XXX utilizes a built in battery which can be removed in about 5 minutes after taking off the rear wheel, and releasing a quick release on the rear suspension. It is a 40ah max 38.4ah nominal battery consisting of 128 LG M-50 21700 cells in 16s8p configuration. Its 2400 watt hours and efficient IPM motor should give you a more effective range than the newest Sur-Ron X.

Talaria xxx

SPECIFICATIONS

TALARIA X3 CONCEPT

VEHICLE:

Size: 1907mm x 805mm x 1102mm
Wheel Base: 1255mm
Min Ground Clearance: 270mm
Seat Height: 805mm
Net Weight: 55kg (including 40AH Battery)
Brake: Front Disc / Rear Disc
Rim Size: FR 1.4×17 / RE 1.6×17
Tire Size: FR 90/80-17 / RE 90/80-17
Front Fork: 160mm Travel
Rear Shock Absorber: 85mm Travel
Top Speed: 75 km/h
Min. Turning Radius: 1.7m
Steering Angle: 40°
Range: 90-100 km @ 25 km/h (40Ah Battery)
POWER SYSTEM:

Motor Type: Air-Cooled DC IPM
Rated Voltage: 60V
Rated Torque: 12 N.m
Peak Torque: 33 N.m
Rated Power: 3000w
Peak Power: 6000w
BATTERY:

Battery Capacity: 40Ah
Cell Type: 21700 Lithium-Ion LG
Charger: 8Ah-110/220V
TRANSMISSION:

Transmission: Belt
2nd Transmission: Chain

WARRANTY

  • The whole vehicle will cover 2 years warranty.
  • After-sales service method: For any parts included in the scope of after-sales service, we will send original spare parts.
  • Any product version differences due to different production batches will not be included in the scope of after-sales service.

The following conditions are notcovered by the warranty:

  1. Man-made damage, self-modification, collision damage of spare parts, etc.
  2. Tire puncture by sharp objects.
  3. Water damage of the battery, motor and controller.

For more details please check our warranty policy page.

SHIPPING

  • EU/USA warehouse stock will take expected 4-7 days to arrive.
  • Chinese warehouse stock will take expected 45-50 days to arrive.
  • All shipping methods have included tax, VAT, custom fees.(all fees included in the total price)

Refund Policy

  • You can cancel your order at any time before your order ships and receive a full refund.
  • You can ask for a return in 14 days after sign for the goods, but make sure you didn't open the box.When signing for the goods, please indicate on the receipt form that you need to return the goods or if there are any problems with the goods.
    If we do not see these on the receipt, we will deny your return request.
  • If your order encounters a shipping delay of more than 60 days（ship from China）, you can contact our customer service and request a refund.
  • Except for quality problems with motors and batteries, return service will not be included for other products with quality problems.
  • We strongly recommend that you contact our customer service before refunding, and we will take appropriate actions. Please try not to use chargeback, as this will have a serious impact on our payment system. And chargeback is likely to consume 3-6 months of waiting time. We will also permanently block customers with chargeback history.
  • Please see our return/refund policy page for additional details.
