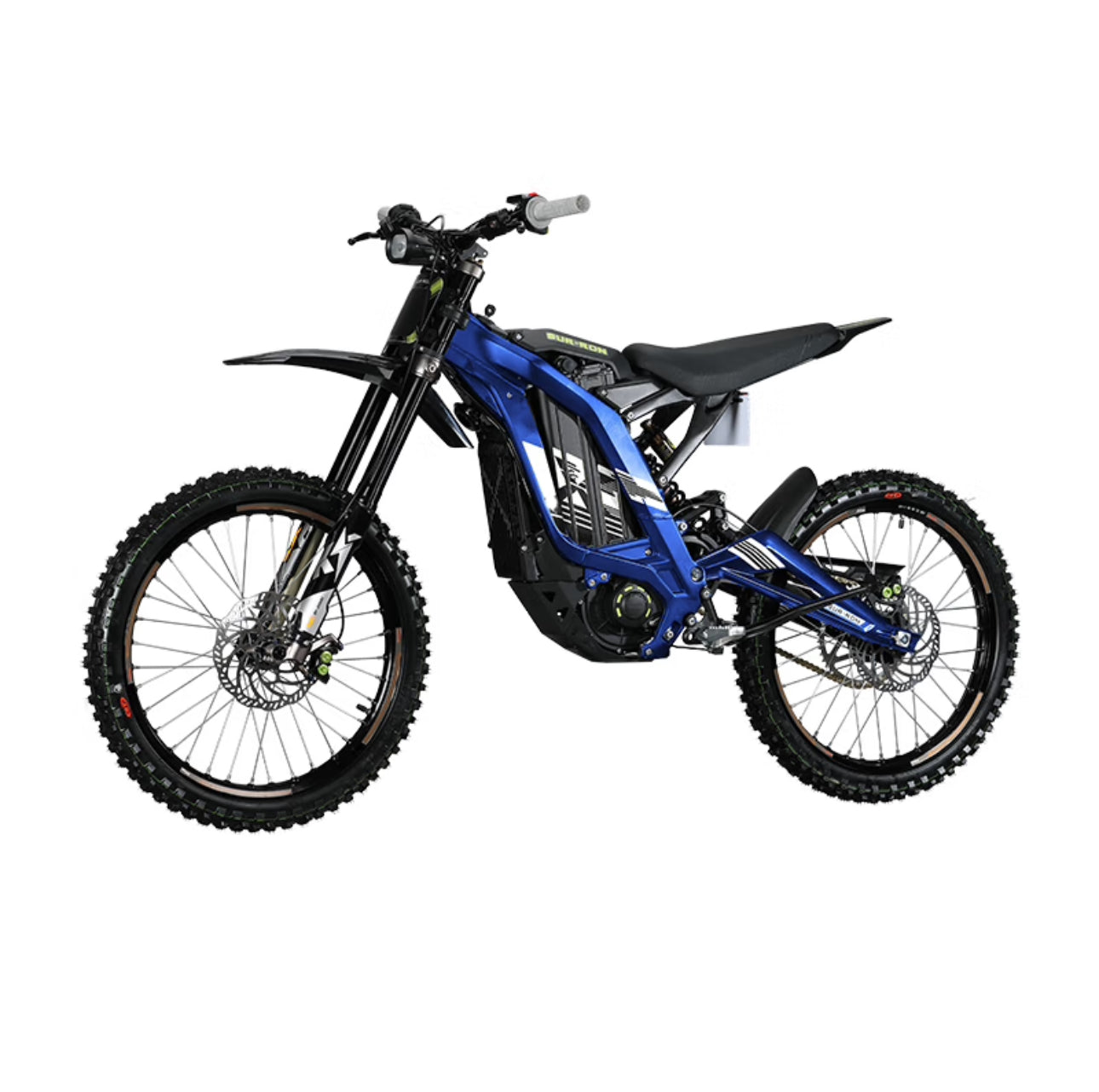

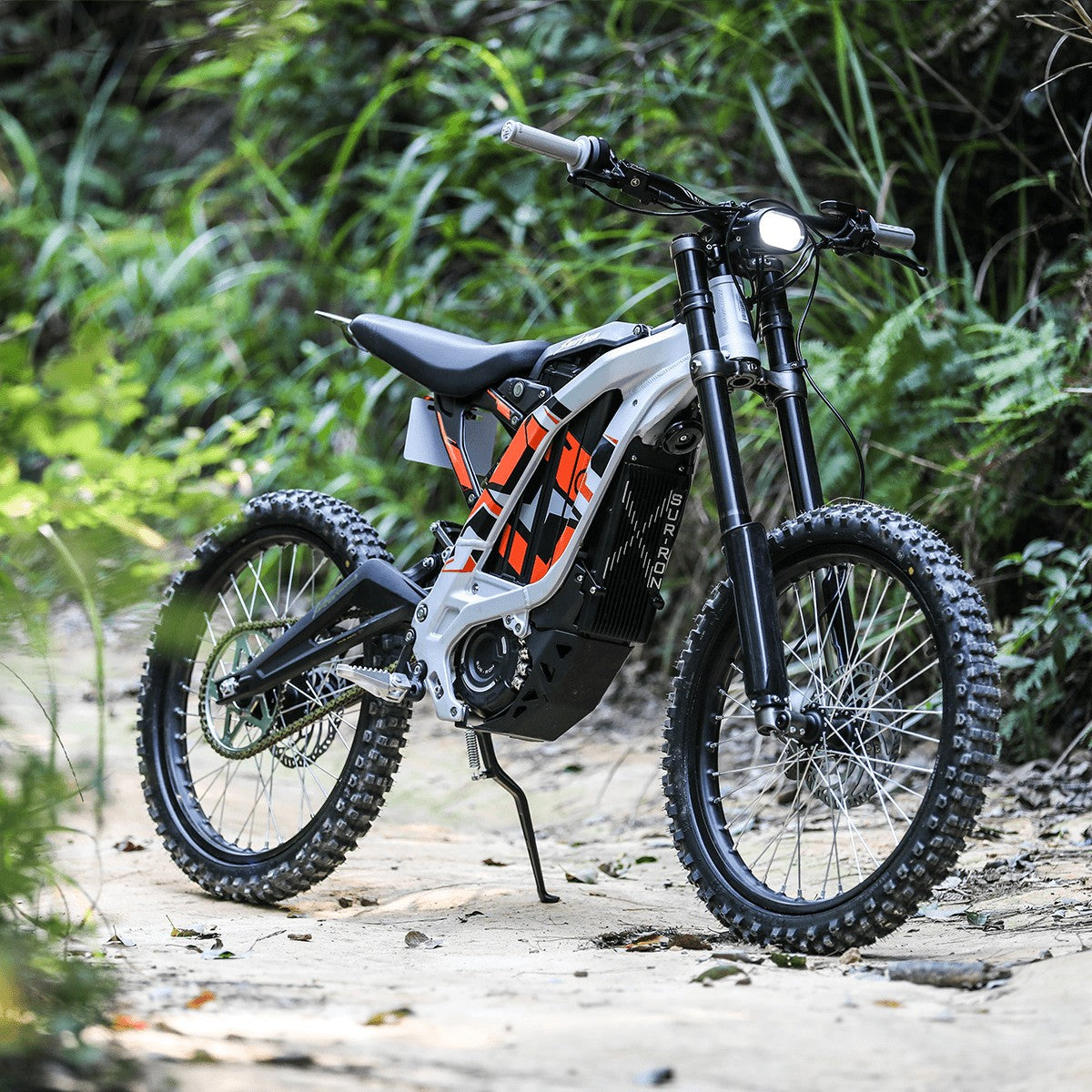

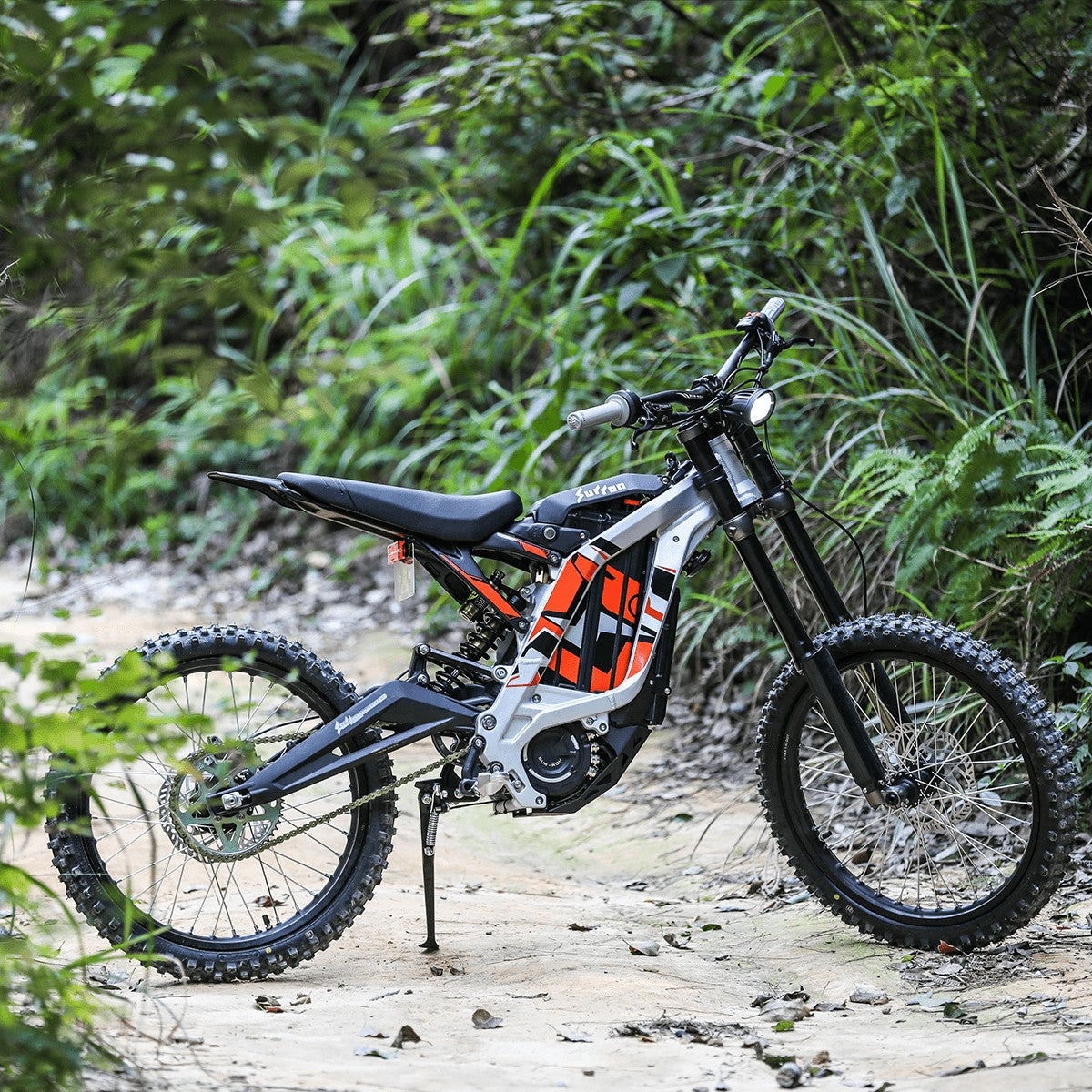

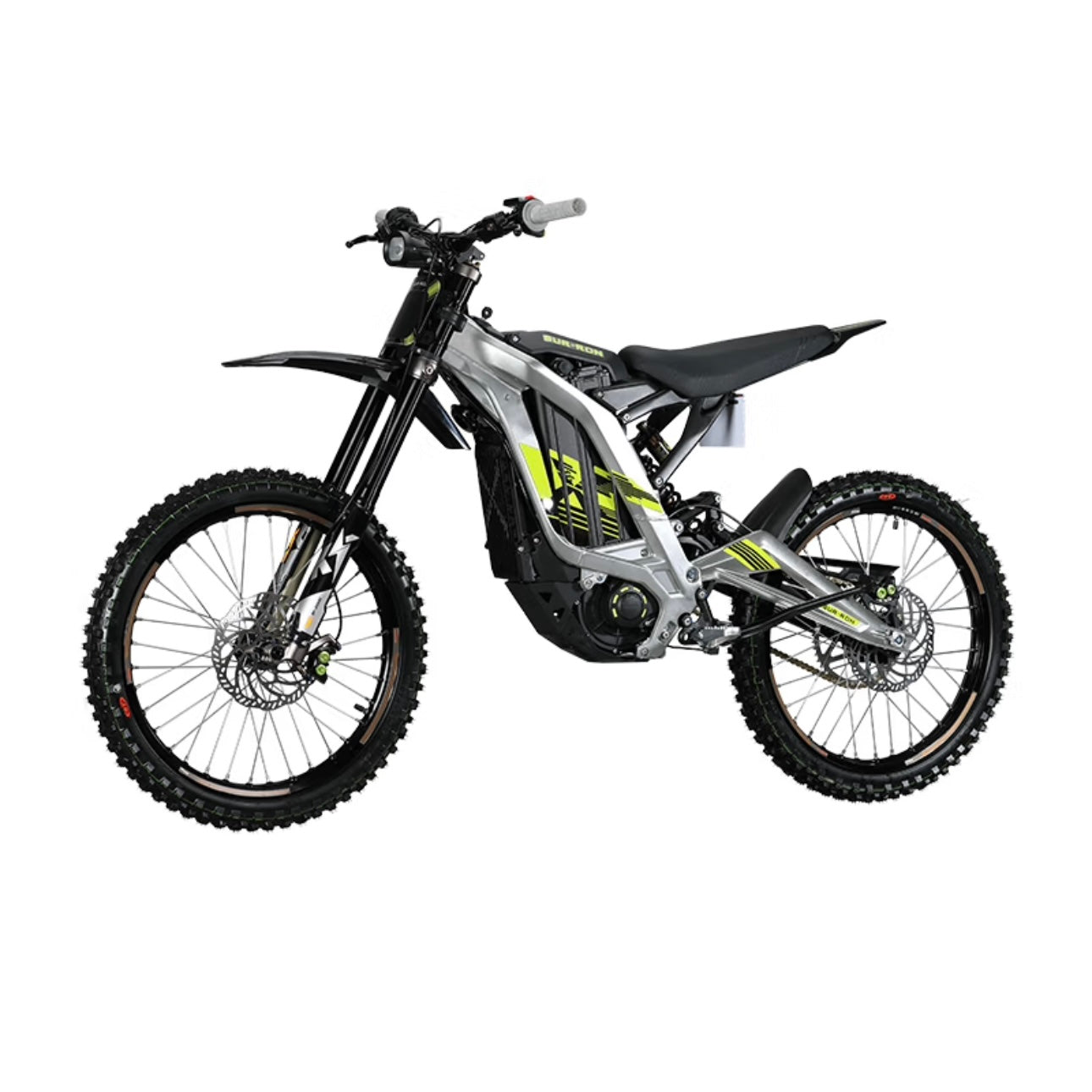

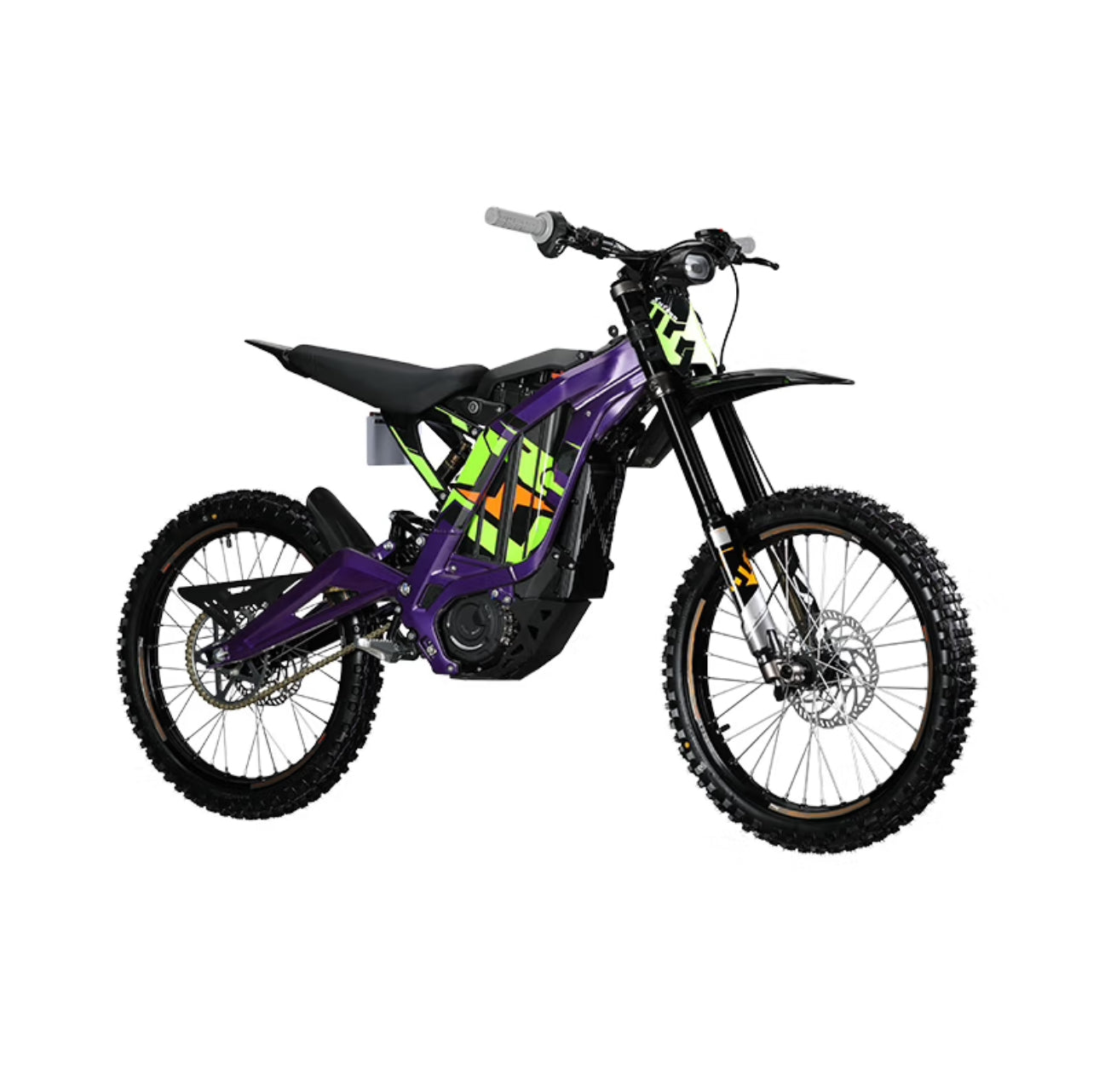

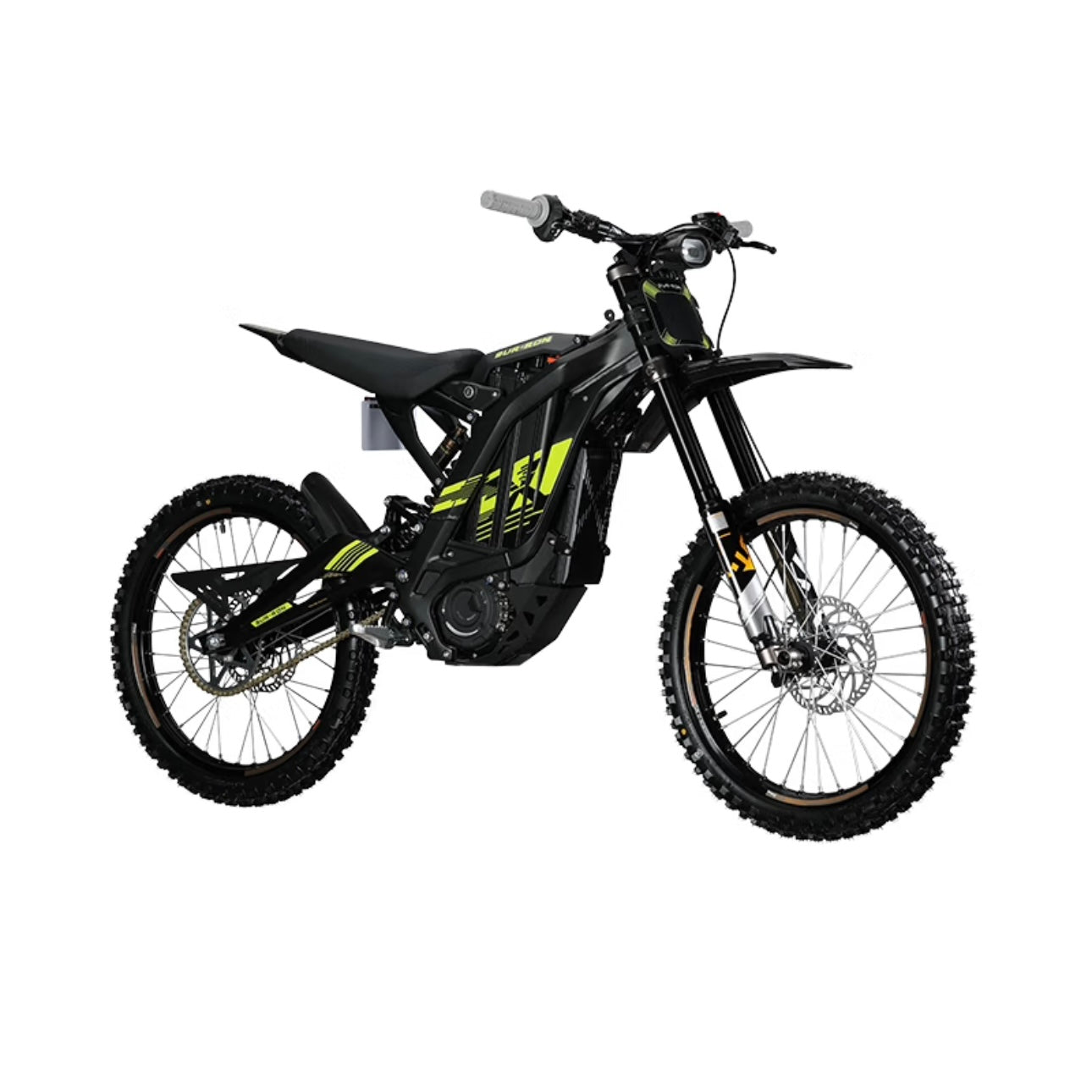

SURRON Light Bee X 60V 40AH

Motor
Motor Type: PMSM
Weight / Motor External Diameter: 7.0kg / 180mm
Motor Axial Length: 130mm
Peak Efficiency: 95.60%
Cooling Method: Air-Cooled

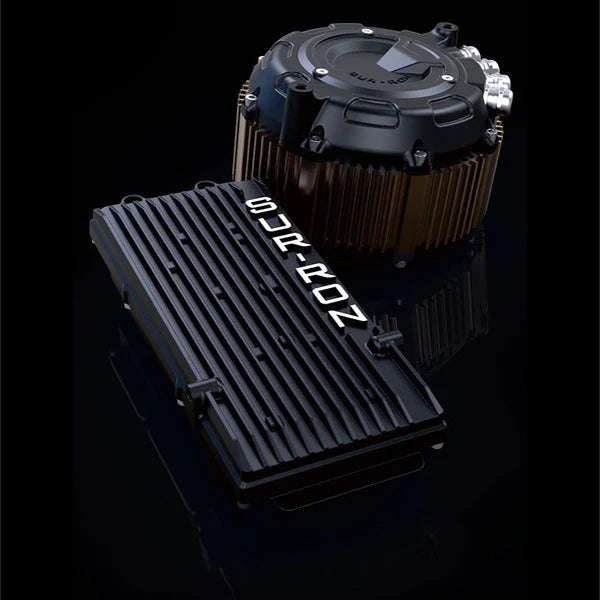

CONTROLLER
Controller Type: X Version Sine Wave
Dimensions: 240mm x 110mm x 50mm
Peak Efficiency: 98.50%
Power Modes: Eco and Sport
MOTOR POWER SYSTEM
Rated Voltage: 60V (DC)
Rated Power / Peak Power: 3,000W / 6,000W
Motor Shaft Output Torque @ 1000RPM: 35.40Nm
Rated Rotation Speed: 4300rpm
Peak Efficiency: 97.8%
Range of Efficiency (≥80): 1.4Nm – 21.5Nm
CERTIFICATES
Road Legal: No

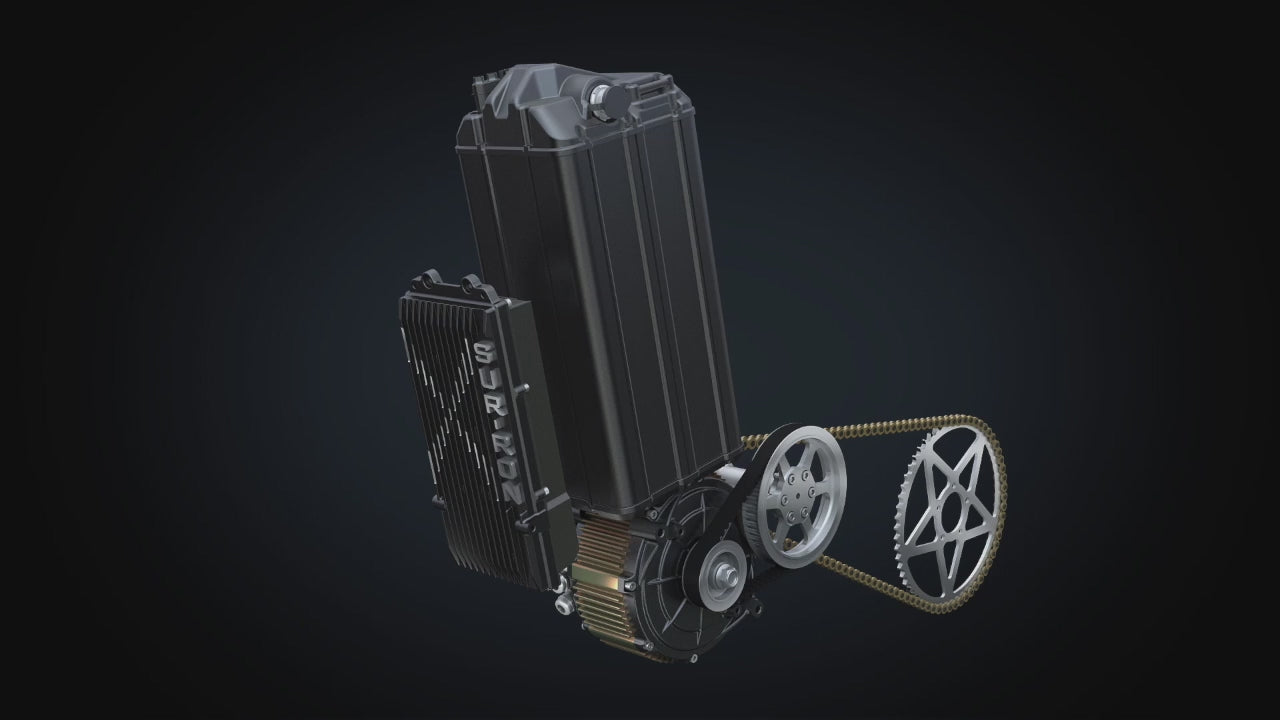

TRANSMISSION
Gear Ratio: 1:7.6
Transmission: Primary Belt & 420 Drive Chain
ELECTRICAL COMPONENTS
Battery: 60V 40Ah Lithium Battery with 176 Panasonic Cells
Battery Life: 500 Cycles (reduces thereafter)
Battery Charge Indicator: Integrated LCD Display
Charger: 10A
Charging Time: 2.5-3.5 Hours
USB Connection: Single USB-2.1 A Socket
Speedometer: LCD Digital Speedometer
Headlight & Rear Light: LED

VEHICLE
Chassis & Swingarm: Forged Aluminum
Chassis Surface & Colour Processing: Anodic Oxidation
Front Suspension: KKE or DNM, Adjustable for Preload & Rebound
Rear Shock Absorber: KKE or DNM Shock with TR Suspension Link System, Adjustable for Compression & Rebound
Wheel Type & Size: 19 x 1.4 Wire-Spoke Wheels Front/Rear, Alloy Hubs
Tire Size: 70/100-19 Front/Rear
Max Range: 100km @ 32km/h depending upon terrain
Net Weight: 47kg (Plus Battery
Max Load: 100kg (220 lbs.)
Max Climbing Angle: 45 degrees
Rear Sprocket: 48T
Side Stand: With Kill Switch
Vehicle Dimensions: 1,870mm x 780mm x 1,040mm
Minimum Ground Clearance: 270mm
Wheelbase: 1,260mm
Seat Height: 84-88cm
